In Stock-USA Seller-Ships In 24 Hours

Brand New, Genuine OEM, Panasonic-100% Guarantee

OEM (Original Equipment Manufacturer) Part Direct from Panasonic

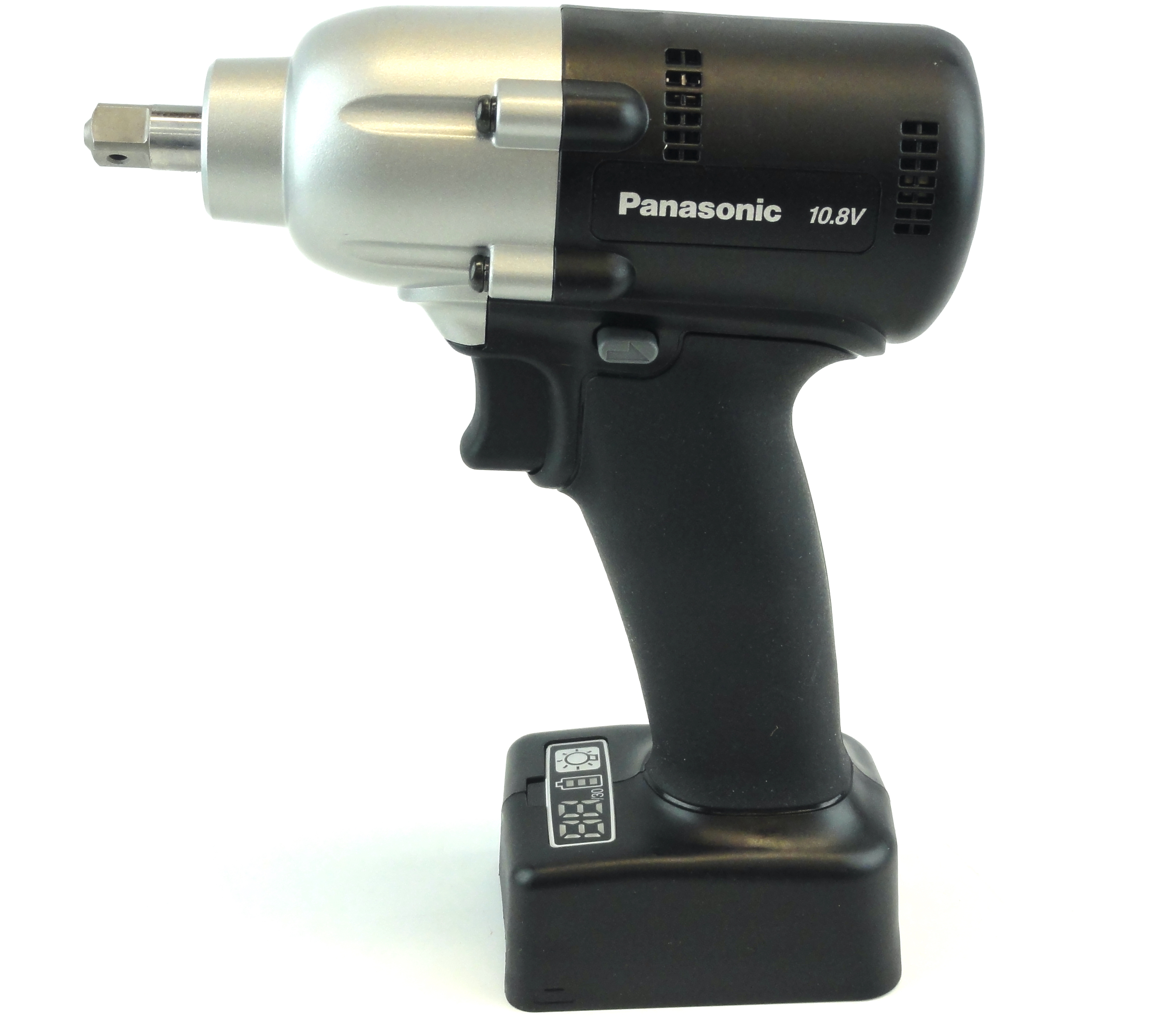

Panasonic EYFLA2Q (EYFLA5Q) 3/8" Square (Pin-Hole Type) Impact Wrench 10.8V Li-Ion Mechanical Pulse (90 Nm of Max Torque) (6 - 30 Nm (Auto Stop) / (40-90 Nm (No Auto-Stop)-Brand New-Genuine OEM-In Stock

In Original Packaging

Does Not Include Battery or Charger

Same Exact Specs As the EYFLA5Q

Specifications:

No Load Speed: (RPM)
Stage 1 (0 – 1300)
Stage 2 (0 – 1450)
Stage 3 (0 – 1550)
Stage 4 – 30·F (0 – 2300)

Impact Per Minute: (BPM)
Stage 1 (0 – 2500)
Stage 2 (0 – 2800)
Stage 3 (0 – 3000)
Stage 4 – 30·F (0 – 3600)

Maximum Torque: (No Auto-Stop)
90 N·m (66.4 ft. lbs.)(918 kgf-cm, 796 in-lbs)

Torque Control Function Operating Range (Torque Auto Stop):
Approx. 6 – 30 N·m (4-22 ft. lbs.)(61 – 306 kgf-cm, 53 – 266 in-lbs)

Overall Length:
164 mm (6-7/16")

Weight(With Battery Pack: EYFB30 (Not Included)
1.3 kg (2.8 lbs)

Condition: Brand New, Genuine OEM Panasonic Tool In Original Packaging-No Manual

Detailed Specifications:

• Application Capacity / Working Speed Approx. 800pcs/pack Approx. 0.8sec/pc (M8: 23 Nm, Stage: 22)
• Applications M6 Bolt (Tensile Bolt) M8 Bolt (Normal Bolt)
             30 stage + F (without torque setting mode)
• Torque Setting Maximum Torque Approx. 90 Nm (66 Ft. Lbs.) (M14 bolt)
• Flush Detection Mode Applications
        L1: For lighter loads during fastener run down
        L2: For prevailing torque during run down and varying joint rate applications
• No Load Speed (RPM)
       Stage 1: 0 – 1300
       Stage 2: 0 – 1450
       Stage 3: 0 – 1550
       Stage 4 ~ 30•F: 0 ~ 2300
• Impact Per Minute (BPM)
       Stage 1: 0 ~ 2500
       Stage 2: 0 ~ 2800
       Stage 3: 0 ~ 3000
       Stage 4 ~ 30 F: 0 ~ 3600
• LED Light: Yes (ON/OFF switch, Light off after five minutes automatically)
• Rehit Prevention Possible to set per 0.1 sec. between 0 - 3 sec.
• Tightening confirmation lamp Yes (OK fastening: Green lamp, NOK fastening: Red lamp)
• Torque Range Approx. 6-30Nm (4.4-22 Ft. Lbs)
• Torque Setting 30 Stage + F (without torque setting mode)
• Voltage 10.8V
• Wireless Communication No
• Dimensions 6 7/32" x 2 21/64" x 9 25/32"
• Weight 2.8 lbs

• PRODUCT DETAILS
  Assure accurate, repeatable fastening on assembly lines where production efficiency and quality control are essential. Featuring torque controlled range of 6-30Nm and a 3/8" square drive with pin-detent, our programmable 10.8V auto shut-off mechanical pulse tool produces superior ergonomics with virtually no torque reaction. Cordless battery-powered design provides freedom of movement and long life emissions-free operation for demanding manufacturing plants.

• KEY FEATURES
  Virtually no torque reaction
  3/8" square drive with Hole Through
  Auto shut-off prevents over torques
  Operator visual pass/fail indicator
  Tool body only

• Longer life, lower maintenance costs, less downtime
  Much more than on-the-job wear and tear, product life and maintenance cycles are determined by the quality of components inside your tool. That’s where Panasonic durability goes to work for you. Constructed with innovative long-life internal components such as high-efficiency brushless motors and hybrid switches, our cordless assembly tools last considerably longer and cost nearly 80% less to maintain than air tools.

• Increase speed and production efficiency
  Visual indicator and automatic shut-off provides operators instant visual for OK/NOK status. The highly visible LED light can be seen from rear of tool and helps the operator know whether to move on to the next fastener or stop and rework the product. In addition, a built-in LED light illuminates the assembly area for fast, accurate assembly.

• Superior ergonomics for improved worker safety
  Our mechanical pulse tools are ergonomically designed with worker safety top of mind. Lightweight and balanced with a cushioned grip and virtually no torque reaction reduces operator fatigue and injury while creating a healthier, more productive work environment. A modern cordless design allows total freedom of movement inside vehicles and tight work spaces for greater production efficiency.

• Intelligent auto shut-off ensures greater accuracy
  Intelligent auto shut-off eliminates over-torque, under-torque and operator-influenced torque issues. The intelligent on-board CPU uses an advanced algorithm to search for seating torque during rundown. Once seating torque is found, the tool switches to torque calculation mode and automatically shuts-off when final torque is achieved, resulting in greater fastening accuracy and repeatability.

• Easy programming for operator lockout
  Prevent operators from tampering with tool settings. Use the intuitive remote control to enable rehit prevention, select joint type, view tool data, operator lockout, and restore factory defaults.

• Reduce emissions and energy costs
  While leaky compressed air systems waste energy and pollute the air with oil vapors, our cordless assembly tools save energy and improve indoor air quality across your facility. A long battery life and increased durability provides a smart, eco-friendly alternative to energy-hogging air tools without sacrificing quality control.
