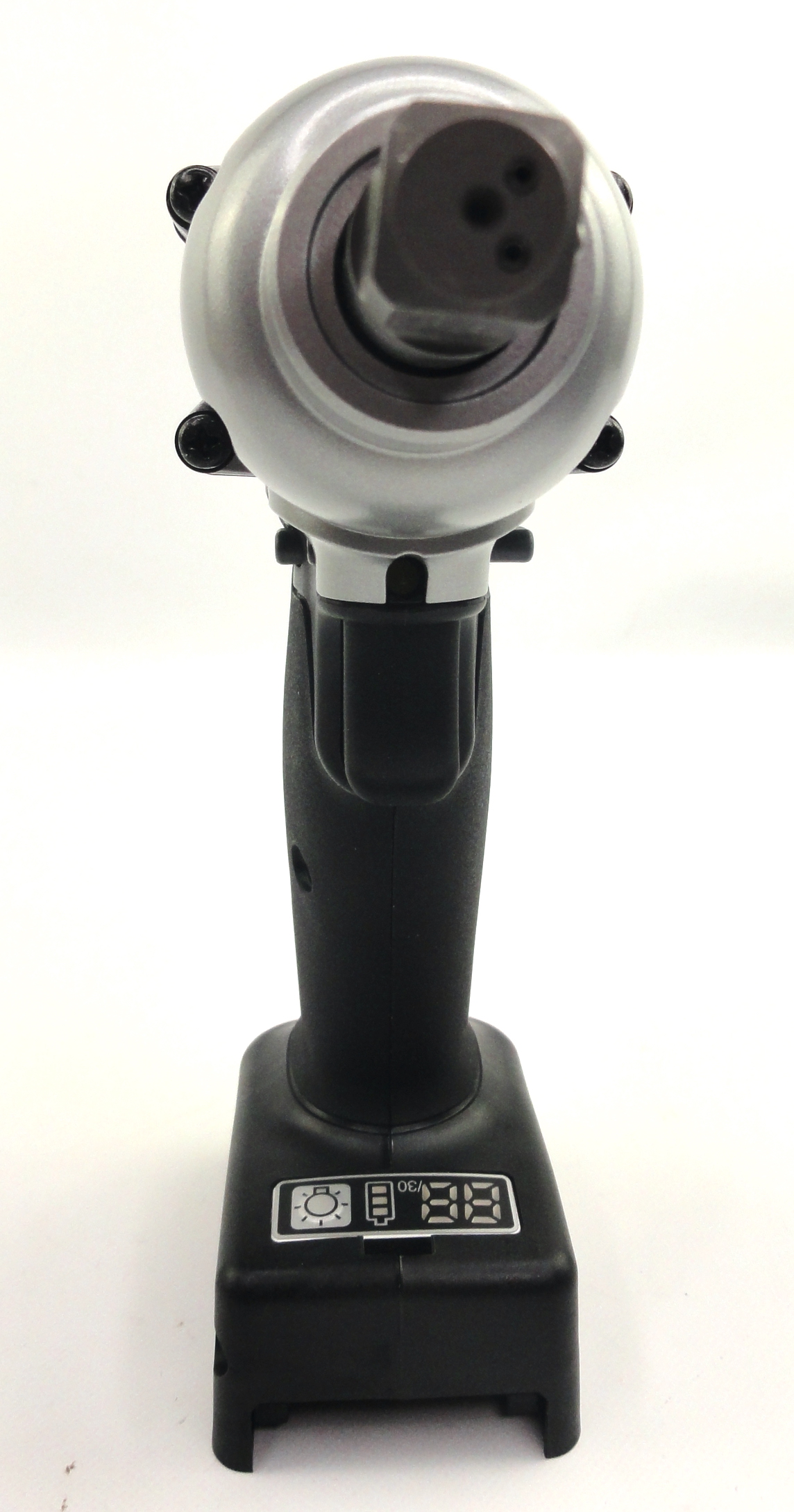

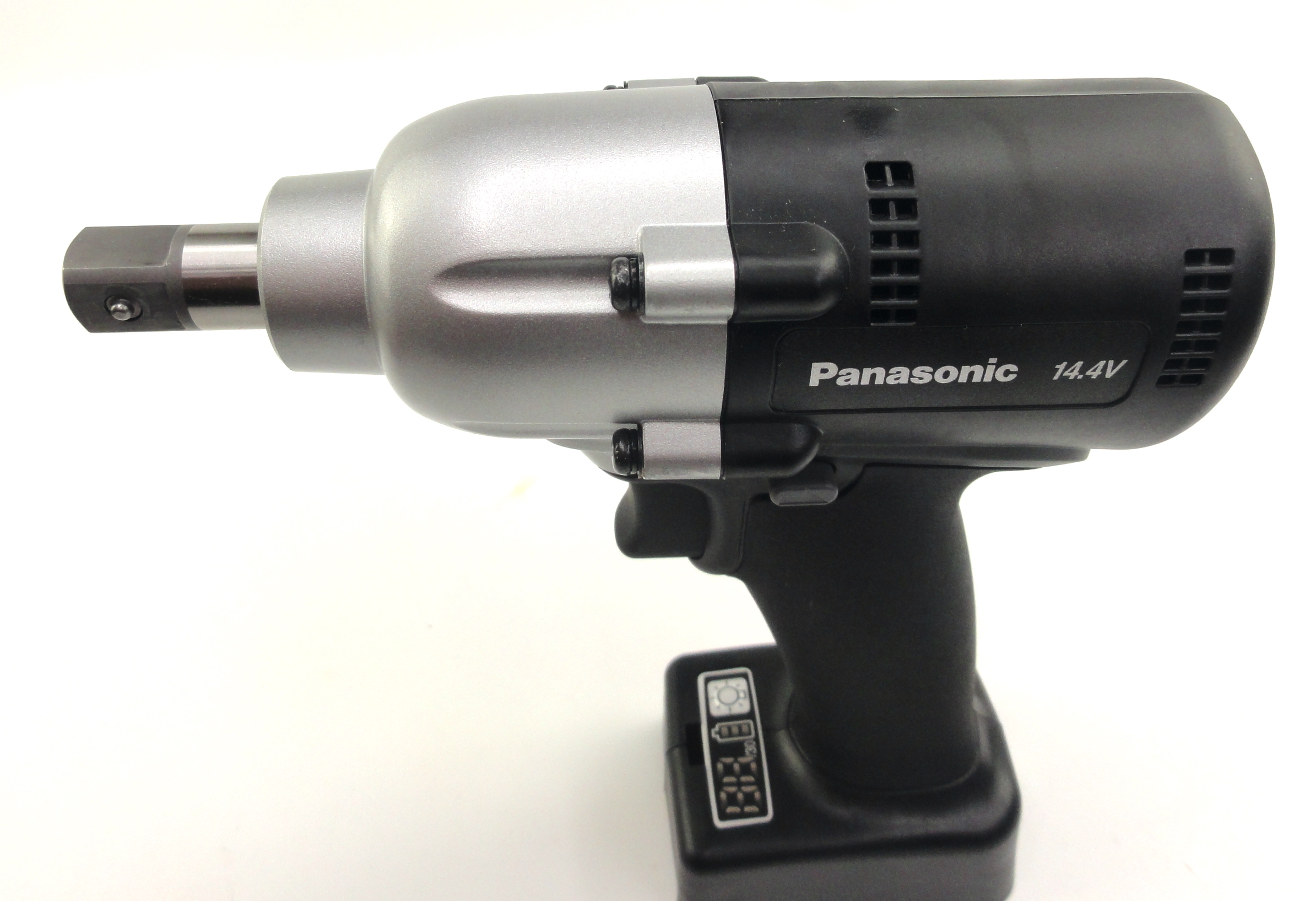

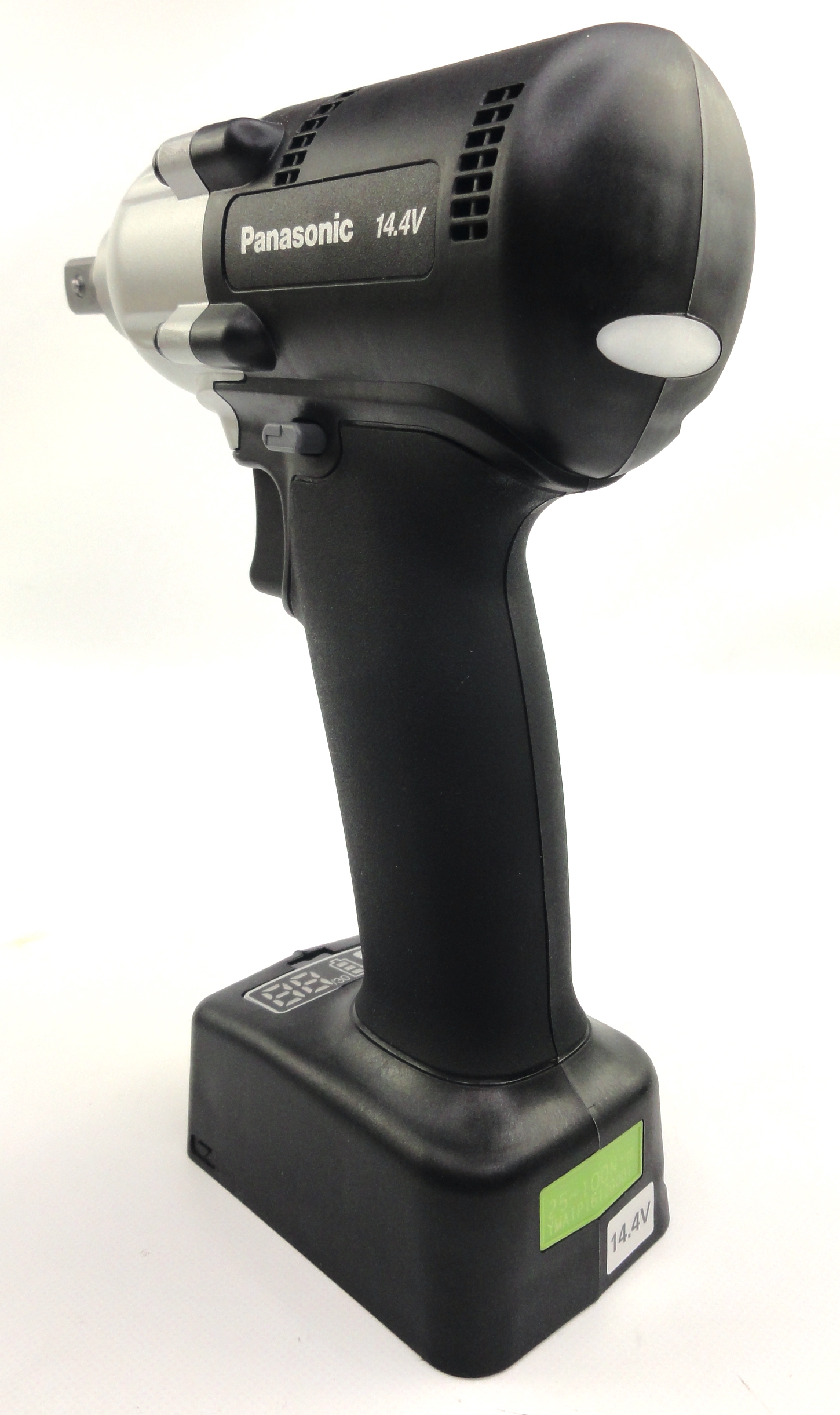

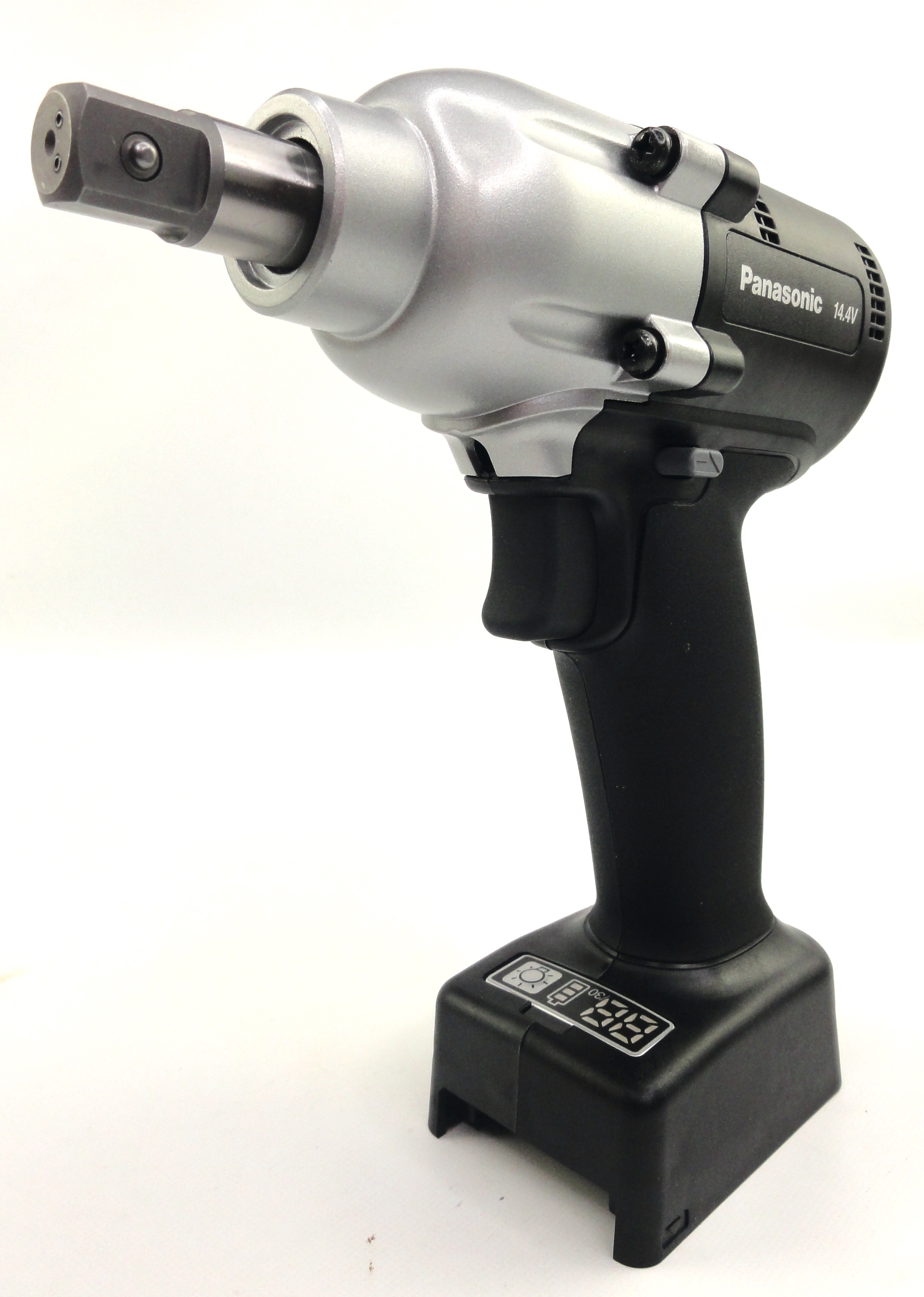

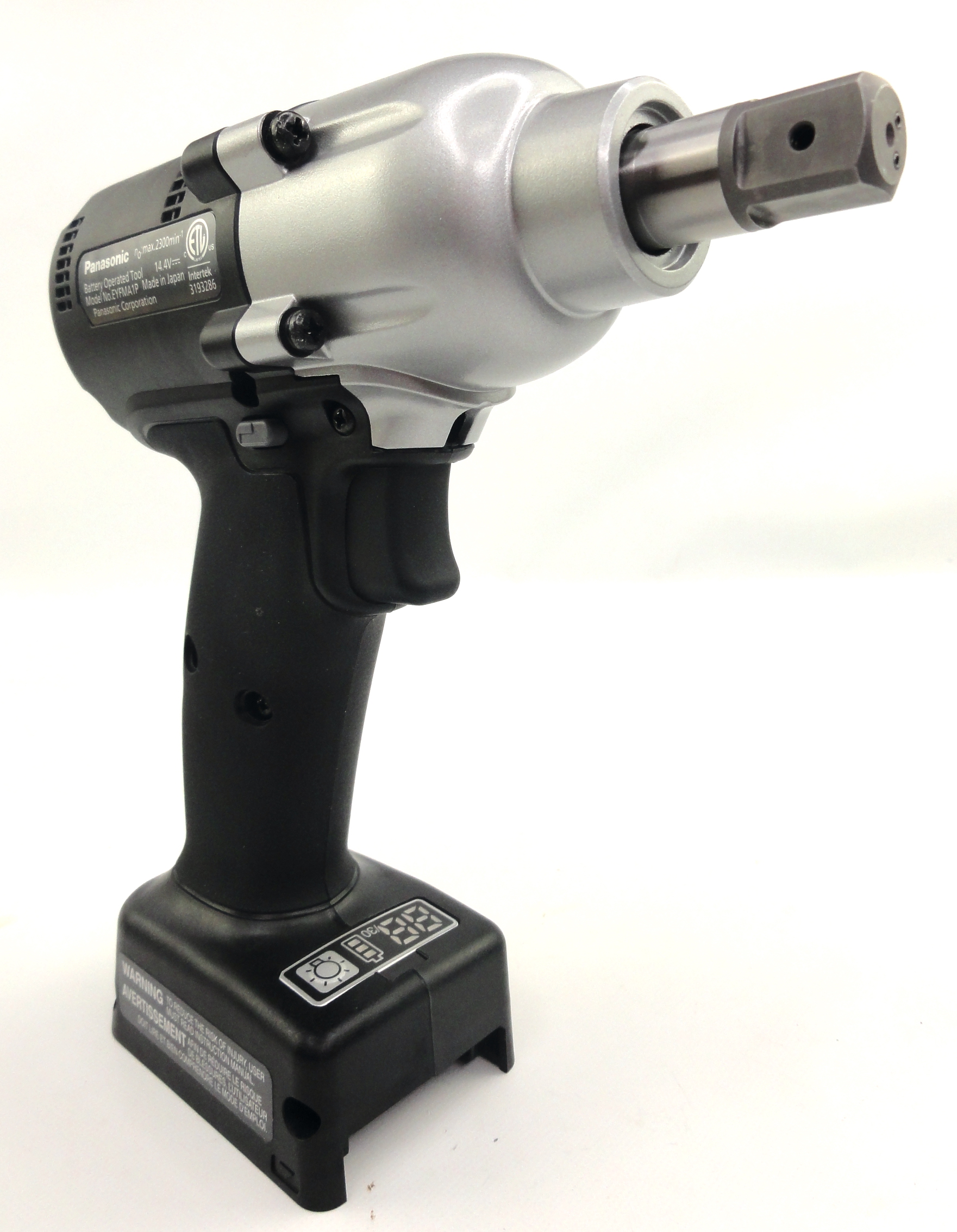

Panasonic EYFMA1P 14.4V Impact Wrench 1/2" Square Drive Mechanical Pulse Assembly Tool-Brand New-Genuine OEM-In Stock

Panasonic Heavy-Duty 14.4 Volt 1/2” Square Drive Cordless Mechanical Pulse Assembly Tool Impact Wrench

• Max Torque: 185 Nm/1,640 Inch Pounds

• Torque control function (Auto Shutoff) operating range: 25-100 Nm / 310-885 Inch Pounds


With Brushless Motor, Variable Speed, Reversing, Electronic Torque Auto Shutoff, Electronic Brake, Light and More!!

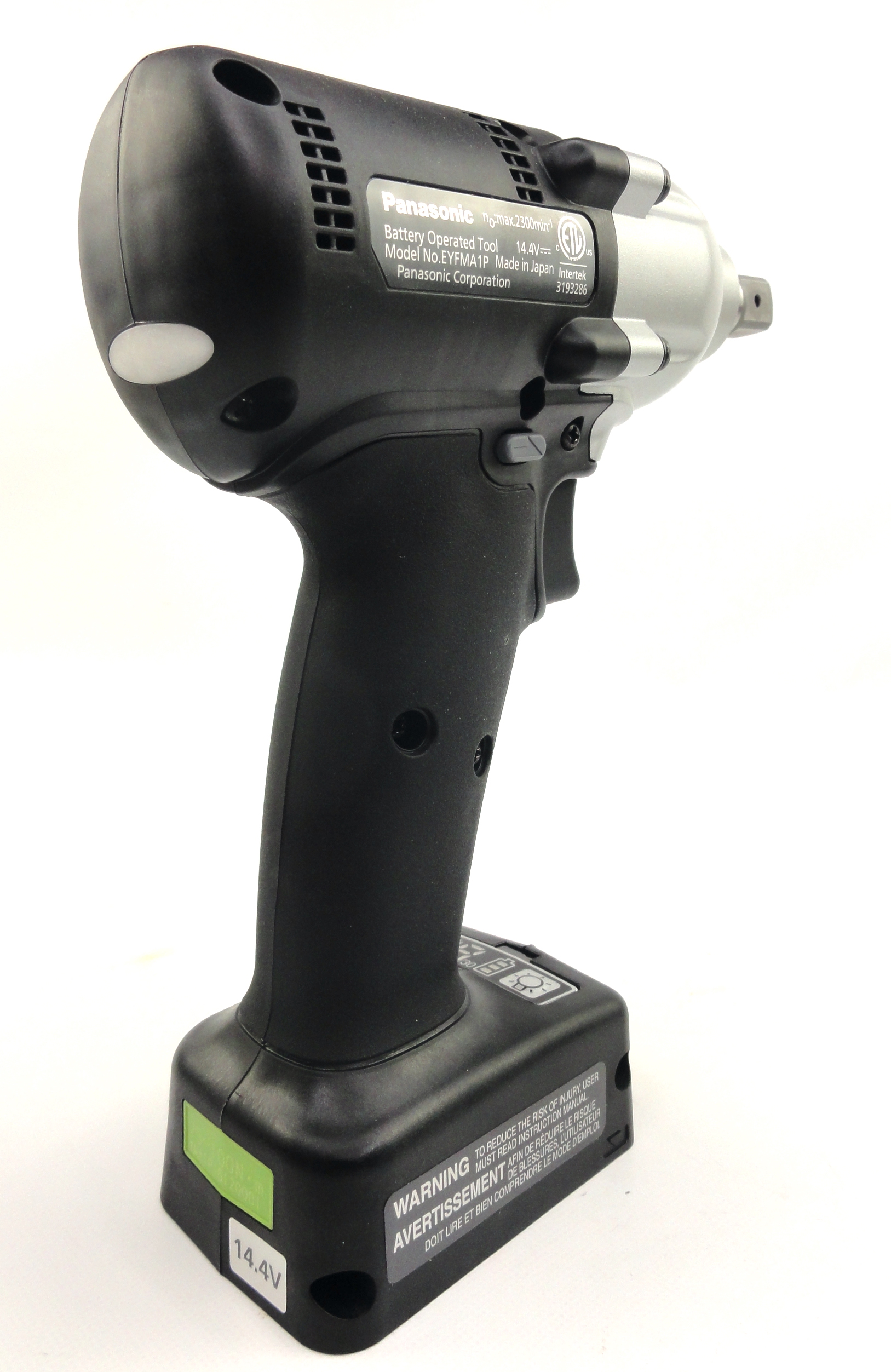

Model # EYFMA1P

Made In Japan

Does not include batteries, charger, remote, or carrying case

Torque adjustments, settings etc. are done by a remote control (EYFA31B) (Not Included)

Condition:

Brand New, Genuine OEM Panasonic Mechanical Pulse Tool. 100% Guaranteed!

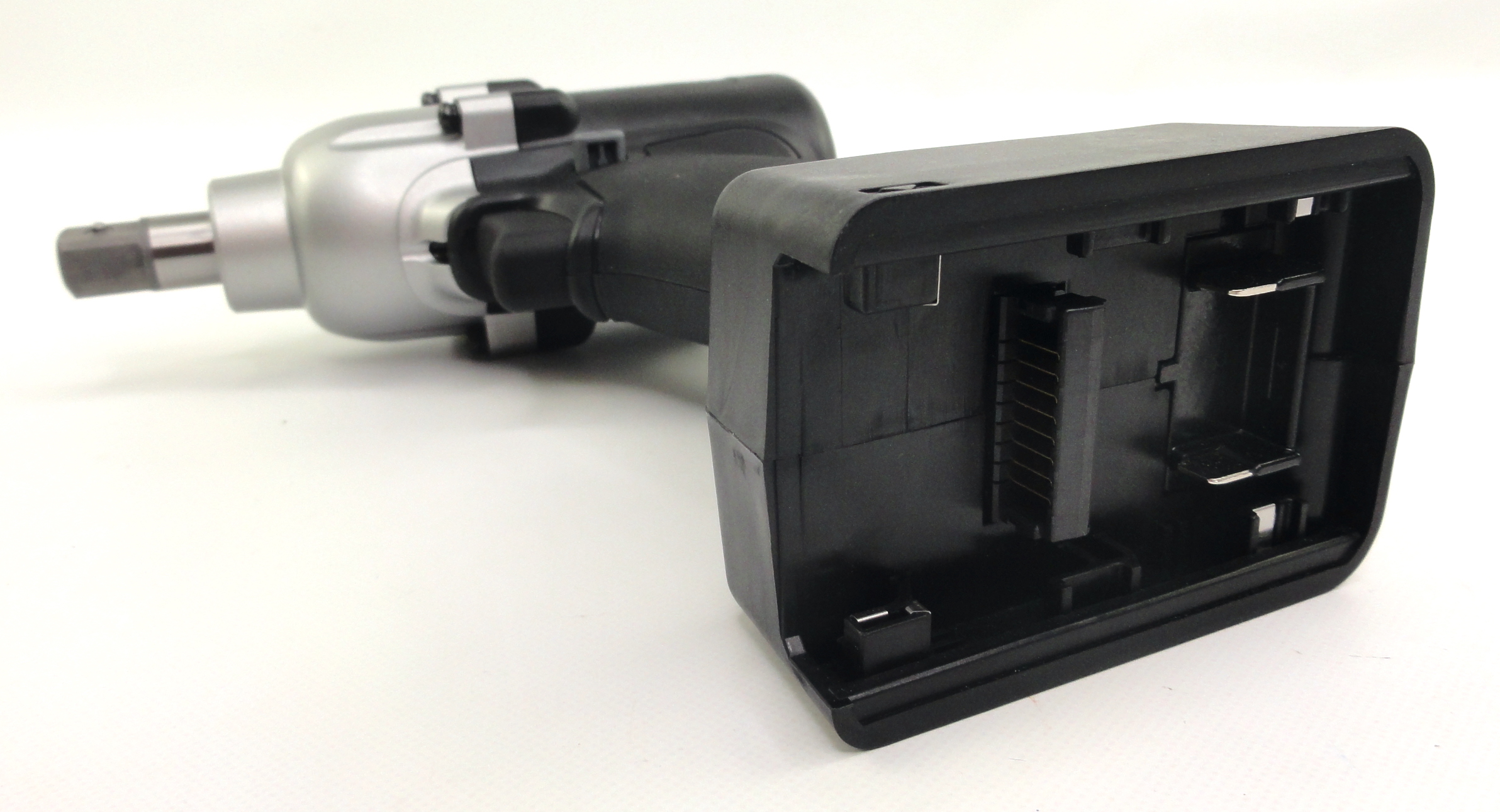

Compatible Batteries:

EYFB40, EYFB41, EYFB42

PRODUCT DETAILS:

Assure accurate, repeatable fastening on assembly lines where production efficiency and quality control are essential. Featuring torque controlled range of 25-100Nm (185 Max) and a 1/2" square drive with pin detent, our programmable 14.4V auto shut-off mechanical pulse tool produces superior ergonomics with virtually no torque reaction. Cordless battery-powered design provides freedom of movement and emissions-free operation for demanding manufacturing plants.

KEY FEATURES:

• Virtually no torque reaction

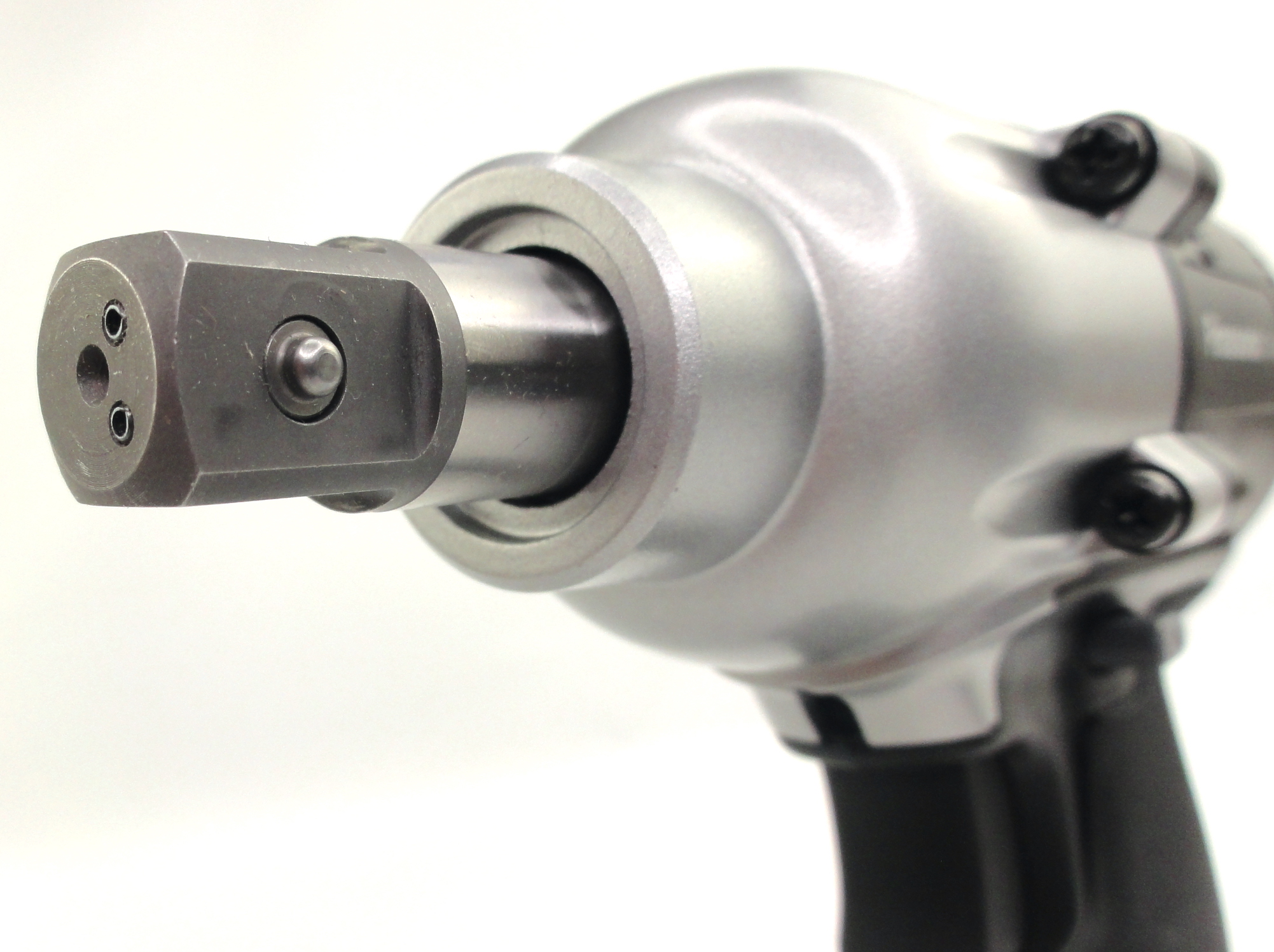

• 1/2 square drive with pin detent

• Auto shut-off prevents over torques

• Operator visual pass/fail indicator

FEATURES:

• Lightweight: 3 lbs.

• High Power: 185 Nm/1,640 in.lbs of torque,

• RPM's-No Load: 0-2300 RPM,

• Impacts Per Minute: 0-3200 BPM

• Max Torque: 185 Nm/1,640 Inch Pounds

• Torque control function (Auto Shutoff) operating range: 25-100 Nm / 310-885 Inch Pounds

• Electronic Performance Monitoring System

• Brushless Motor and Electronic Switch

• Reversible: Yes

• Electric Brake: Yes

• Ergonomics: Ergonomic design using Sure Grip Surface

• Dimensions: Compact size (L x H x W): 6-7/32" x 2-21/64" x 9-25/32"

Typical Applications:

• M10 Bolt (Tensile Bolt)

• M12 Bolt (Normal-Tensile Bolt

• M14 Bolt (Normal Bolt)

Specifications:

• Application Capactiy / Working Speed Approx. 620 pcs/pack Approx. 0.9 sec/1pcs (M12: 628 in-lbs, Stage: 22)

• Applications M10 Bolt (Tensile Bolt) M12 Bolt (Normal & Tensile Bolt) M14 Bolt (Normal Bolt)

• Battery Capacity 4.2Ah or 2.0Ah (Not Included)

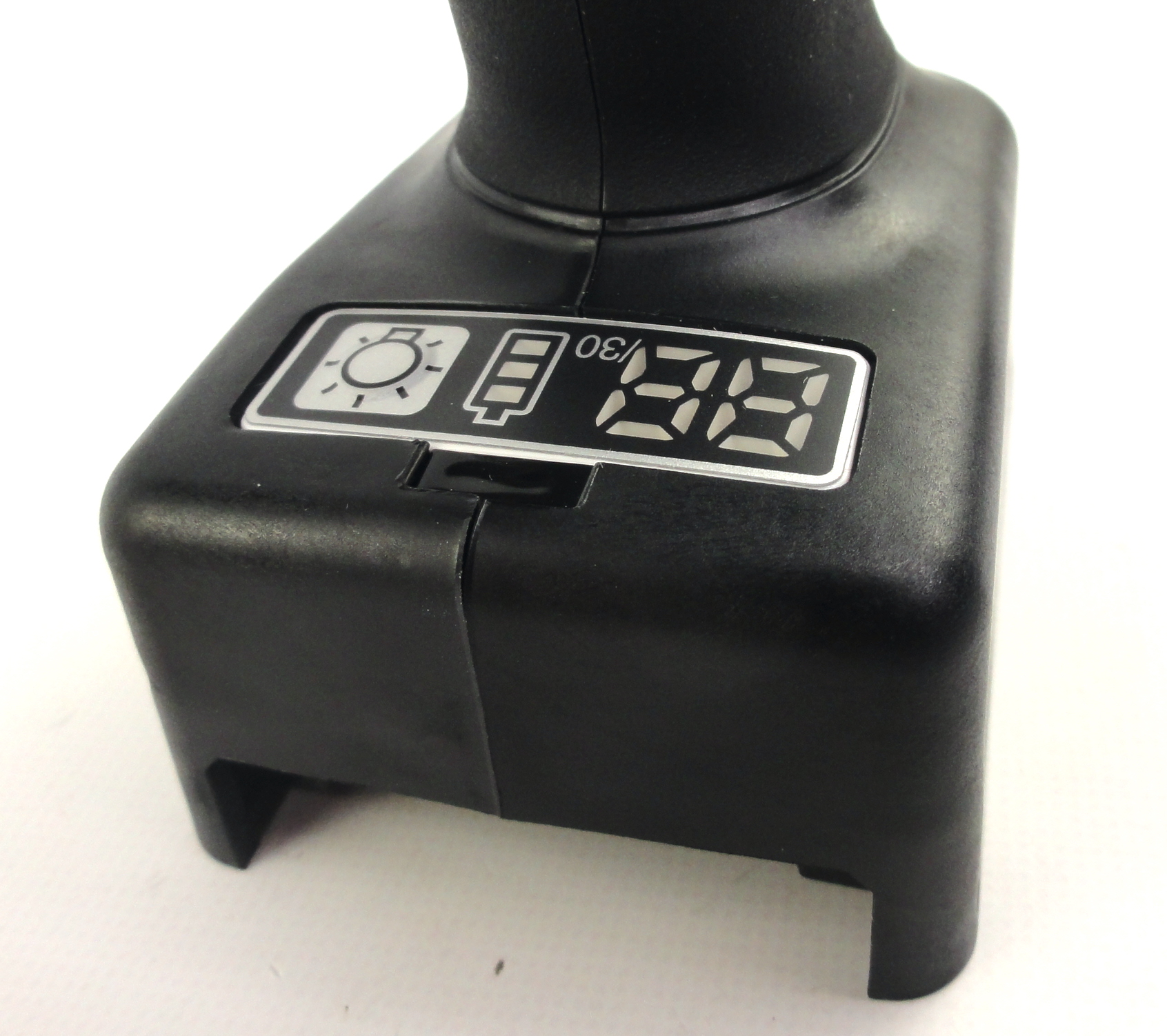

• Battery Indication Lamp 3 Stage

• Brushless Motor YES

• Charging Time - Full 60 min

• Drive 1/2" Square Drive with Pin-Detent

• Flush Detection Modes L1: For applications with no pulses before flush point or when fastening fragile materials like plastic to metal.L2: For prevailing torque during run down and varying joint rate applications

• Hybrid Switch YES

• Impact Per Minute 0 - 3200

• LED Light On/Off Switch. (Light will turn off automatically after five minutes of no use)

• Low Battery Disable Yes

• No Load Speed (RPM) 0 - 2300

• Rehit Prevention Possible to set per 0.1 sec. between 0 - 3 sec.

• Tightening Confirmation Lamp Tightening is finished: Green light Tightening is not finished: Red light

• Maximum Torque Approx. 185 Nm (136 Ft. Lbs.) (M14 bolt).

• Torque Range Approx. 25-100Nm (18.4-73.8 Ft. Lbs)

• Torque Setting 30 Stage + F (without torque setting mode)

• Voltage 14.4V

• Wireless Communication No

• Dimensions 6-7/32" x 2-21/64" x 9-25/32"

• Weight 3.3 lbs

Superior ergonomics for improved worker safety

Our mechanical pulse tools are ergonomically designed with worker safety top of mind. Lightweight and balanced with a cushioned grip and virtually no torque reaction reduces operator fatigue and injury while creating a healthier, more productive work environment. A modern cordless design allows total freedom of movement inside vehicles and tight work spaces for greater production efficiency.

Intelligent auto shut-off ensures greater accuracy

Intelligent auto shut-off eliminates over-torque, under-torque and operator-influenced torque issues. The intelligent on-board CPU uses an advanced algorithm to search for seating torque during rundown. Once seating torque is found, the tool switches to torque calculation mode and automatically shuts-off when final torque is achieved, resulting in greater fastening accuracy and repeatability.

Easy programming for operator lockout

Prevent operators from tampering with tool settings. Use the intuitive remote control to enable rehit prevention, select joint type, view tool data, operator lockout, and restore factory defaults.

Reduce emissions and energy costs

While leaky compressed air systems waste energy and pollute the air with oil vapors, our cordless assembly tools save energy and improve indoor air quality across your facility. A long battery life and increased durability provides a smart, eco-friendly alternative to energy-hogging air tools without sacrificing quality control.

Longer life, lower maintenance costs, less downtime

Much more than on-the-job wear and tear, product life and maintenance cycles are determined by the quality of components inside your tool. That’s where Panasonic durability goes to work for you. Constructed with innovative long-life internal components such as high-efficiency brushless motors and hybrid switches, our cordless assembly tools last considerably longer and cost nearly 80% less to maintain than air tools.

Increase speed and production efficiency

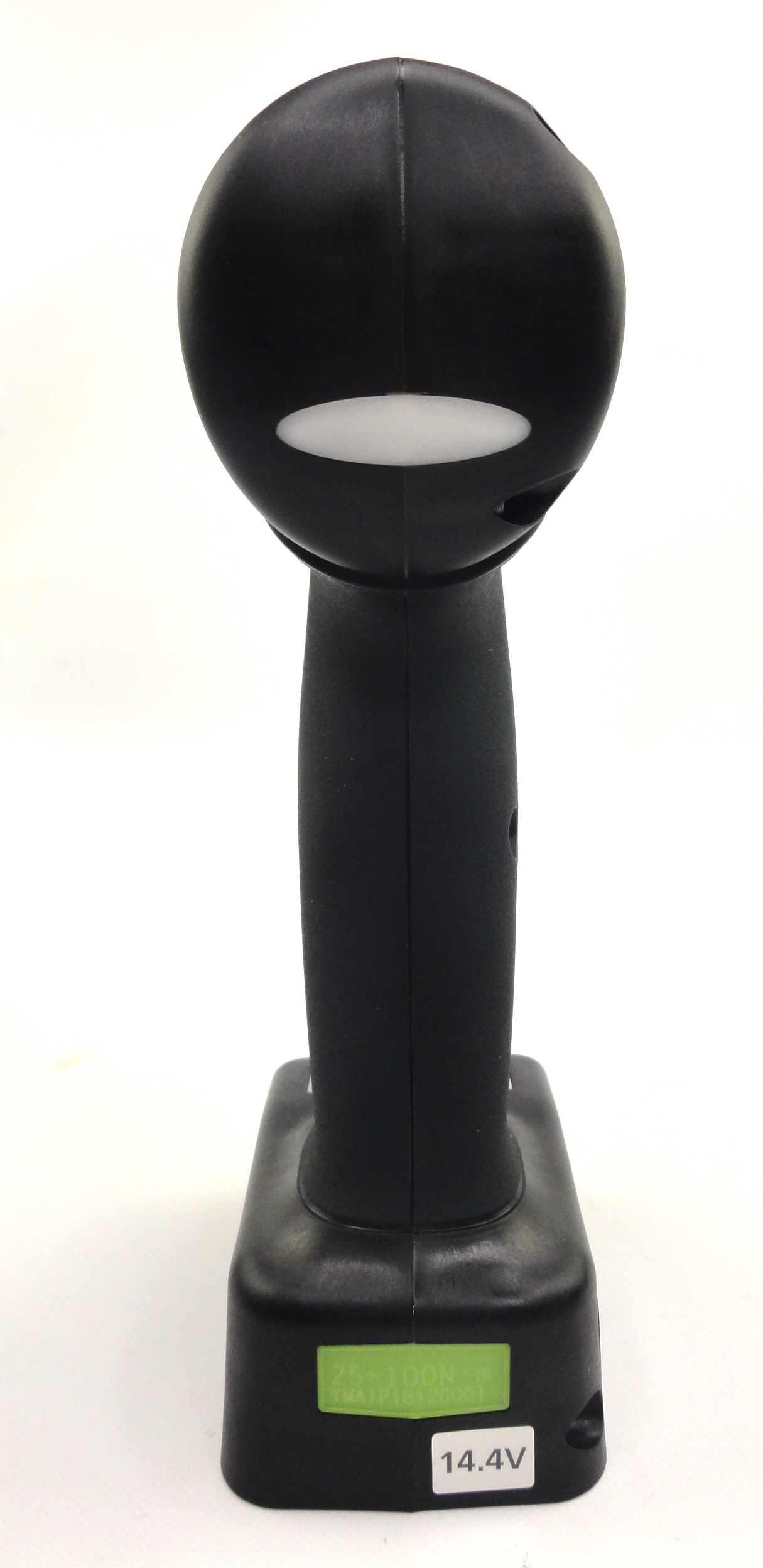

Visual indicator and automatic shut-off provides operators instant visual for OK/NOK status. The highly visible LED light can be seen from rear of tool and helps the operator know whether to move on to the next fastener or stop and rework the product. In addition, a built-in LED light illuminates the assembly area for fast, accurate assembly.
