Panasonic EYFNA1P 18V Mechanical Pulse Tool 1/2” Square Drive Impact Wrench-70-200Nm-Lithium-Ion-Brand New-Genuine OEM-In Stock

Temporarily Out Of Stock

(0) Write a Review
SKU:
EYFNA1P
Condition:
New
Availability:
In Stock
Shipping:
$24.95 (Fixed Shipping Cost)

Product Description

Temporarily Out Of Stock



Brand New, Genuine OEM and 100% Guaranteed
OEM (Original Equipment Manufacturer) Part. Direct from Panasonic



Made In Japan

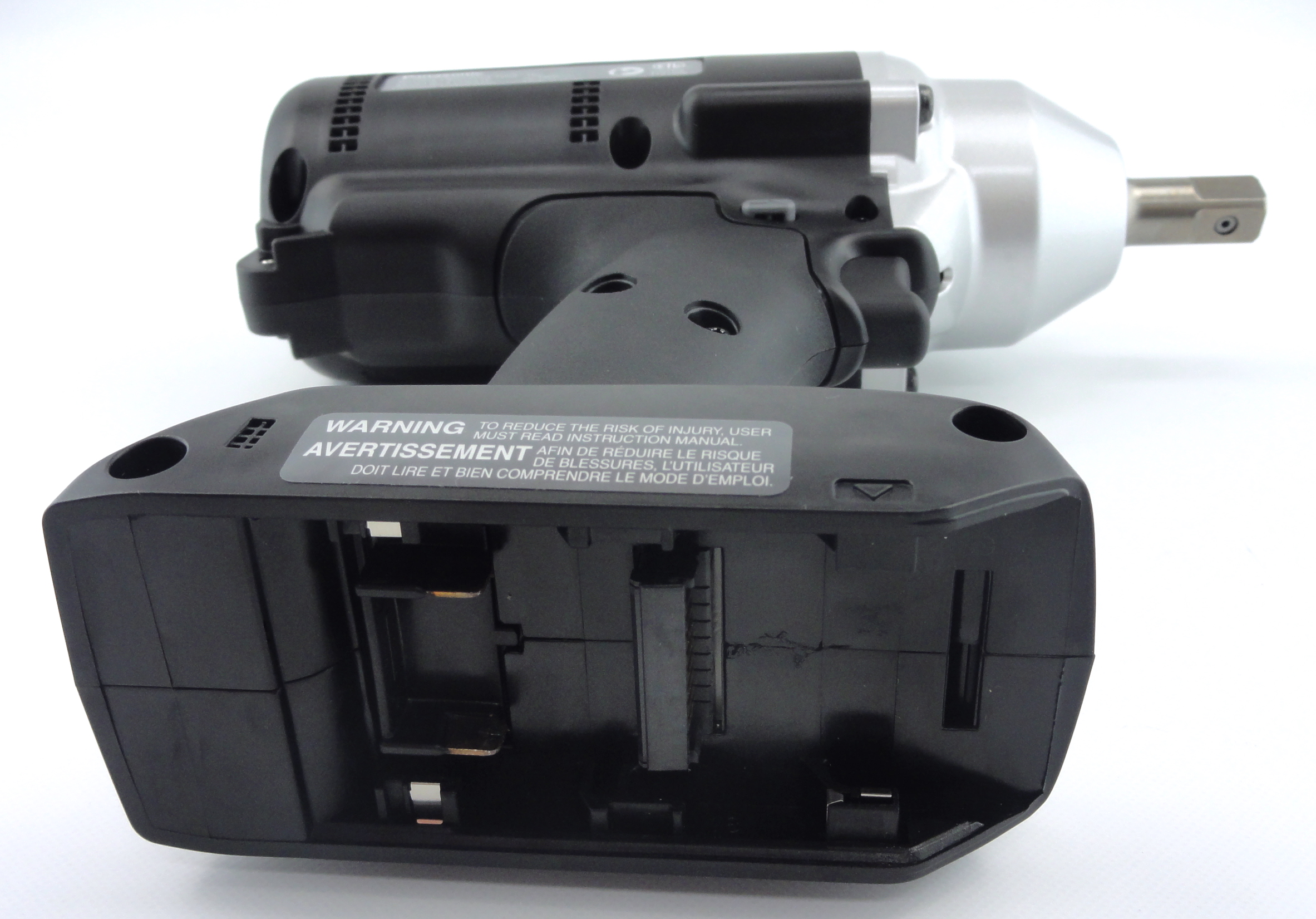

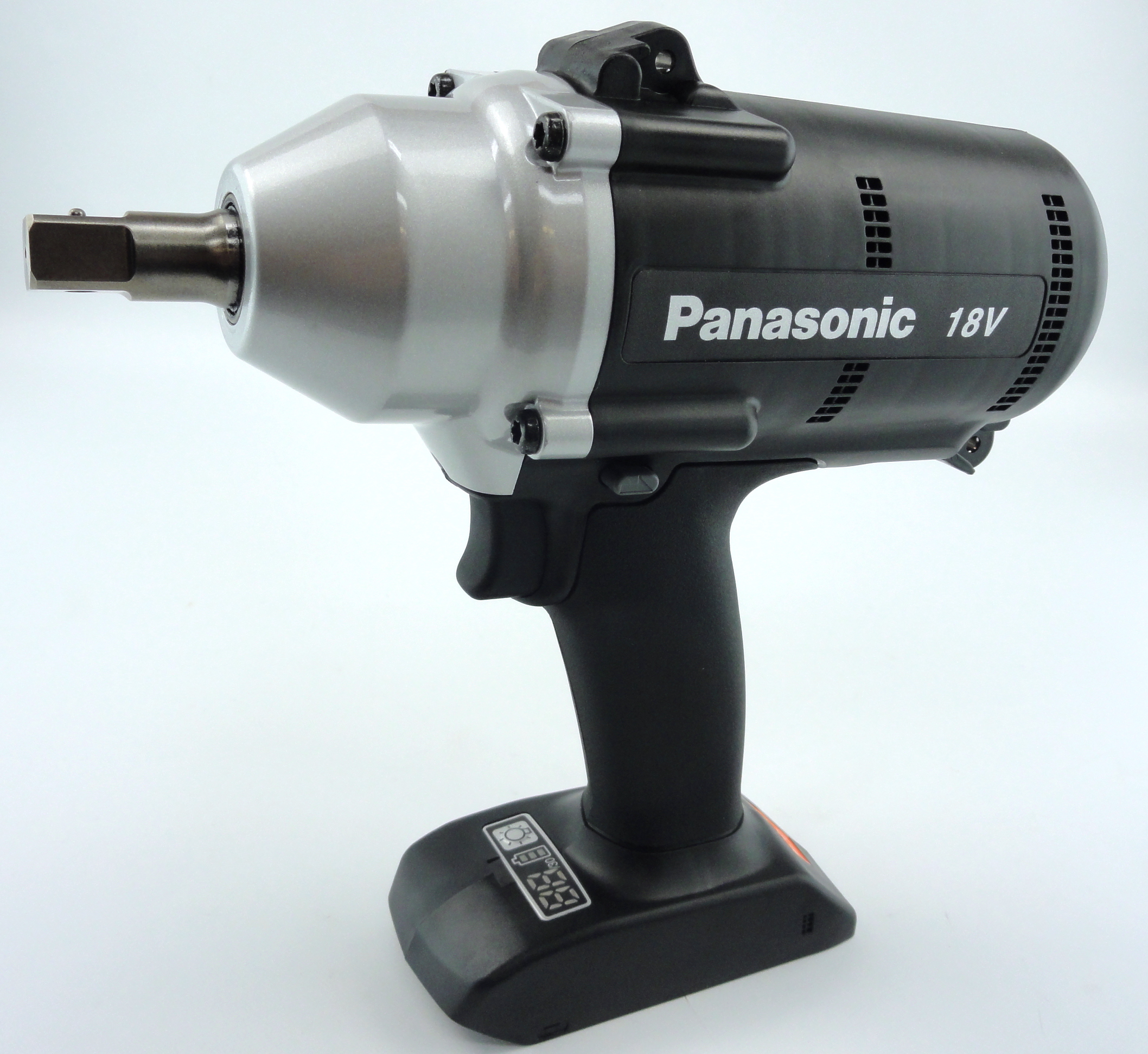

Panasonic EYFNA1P 18V Cordless Mechanical Pulse Tool 1/2” Square Drive Impact Wrench-70-200Nm-Lithium-Ion-Brand New-Genuine OEM-In Stock



Please Note: Tool Only, Does Not Include Batteries, Charger or Carrying Case




Model # EYFNA1P



Condition:

Brand New, Genuine OEM Panasonic 18V Mechanical Pulse Tool. 100% Guaranteed. Well-constructed, tough, dependable charger. Any Questions, please e-mail us.



Product Details:

Assure accurate, repeatable fastening on assembly lines where production efficiency and quality control are essential. Featuring torque controlled range of 70-200Nm and a 1/2" square drive with pin detent, our wireless programmable 18V auto shut-off mechanical pulse tool produces superior ergonomics with virtually no torque reaction. Cordless battery power provides freedom of movement and emissions-free operation for demanding manufacturing plants.



Key Features:

Virtually no torque reaction

1/2" square drive with pin detent

Auto shut-off prevents over torques

Operator visual pass/fail indicator

Tool body only





Product Specifications:

Application Capactiy / Working Speed Approx. 500 pcs/pack (M12: 100 Nm, Stage: 13)

Applications M12-M14 (High Tensile Bolt), M16 (Normal Bolt)

Drive ½" Square Drive Pin Detent

Battery Capacity 5.0Ah

Battery Indication Lamp 3 Stage

Brushless Motor Yes

Flush Detection Modes L1: For applications with no pulses before flush point or when fastening fragile materials like plastic to metal.L2: For prevailing torque during run down and varying joint rate applications

Hybrid Switch Yes

Impact Per Minute 0 - 2200

LED Light On/Off Switch. (Light will turn off automatically after five minutes of no use)

Low Battery Disable Yes

Maximum Torque Approx. 470 Nm(M24 High tensile bolt, F mode tightening 3 sec.) Approx. 520 Nm (M24 High tensile bolt, F mode tightening 5 sec.)

No Load Speed (RPM) 0 - 1900

Programmable Features Programmable auto downshift, Prevent and detect cross threads and rehits, Maintenance Interval Alarm, Variable Speed, Enable / Disable

Rehit Prevention Set to 0.7 sec.

Tightening Confirmation Lamp Tightening is finished: Green lightTightening is not finished: Red light

Torque Range 70 Nm - 200 Nm

Torque Setting 30 Stage + F (without torque setting mode)

Voltage 18V

Wireless Communication No







Superior ergonomics for improved worker safety
Our mechanical pulse tools are ergonomically designed with worker safety top of mind. Lightweight and balanced with a cushioned grip and virtually no torque reaction reduces operator fatigue and injury while creating a healthier, more productive work environment. A modern cordless design allows total freedom of movement inside vehicles and tight work spaces for greater production efficiency.
Intelligent auto shut-off ensures greater accuracy

Intelligent auto shut-off eliminates over-torque, under-torque and operator-influenced torque issues. The intelligent on-board CPU uses an advanced algorithm to search for seating torque during rundown. Once seating torque is found, the tool switches to torque calculation mode and automatically shuts-off when final torque is achieved, resulting in greater fastening accuracy and repeatability.
Easy programming for operator lockout

Prevent operators from tampering with tool settings. Use the intuitive remote control to enable rehit prevention, select joint type, view tool data, operator lockout, and restore factory defaults.
Ultra long life Li-ion battery pack

Our same Li-ion technology that powers the most advanced electric cars also powers our cordless assembly tools. GuardION system protection ensures long life and safety as the tool, battery and charger work together as a single energy-efficient eco system. Sensors prevent overcharging/discharging to avoid cell damage and extend battery life. Automatic power shut-off at the battery prevents overheating, doubling battery life over conventional Li-ion battery packs.


Reduce emissions and energy costs
While leaky compressed air systems waste energy and pollute the air with oil vapors, our cordless assembly tools save energy and improve indoor air quality across your facility. A long battery life and increased durability provides a smart, eco-friendly alternative to energy-hogging air tools without sacrificing quality control.
Longer life, lower maintenance costs, less downtime

Much more than on-the-job wear and tear, product life and maintenance cycles are determined by the quality of components inside your tool. That’s where Panasonic durability goes to work for you. Constructed with innovative long-life internal components such as high-efficiency brushless motors and hybrid switches, our cordless assembly tools last considerably longer and cost nearly 80% less to maintain than air tools.
Increase speed and production efficiency

Visual indicator and automatic shut-off provides operators instant visual for OK/NOK status. The highly visible LED light can be seen from rear of tool and helps the operator know whether to move on to the next fastener or stop and rework the product. In addition, a built-in LED light illuminates the assembly area for fast, accurate assembly.
